5dbi 10dbi Fibreglass Lora Antenna , 868mhz Omni Directional Antenna

Ask Lasest Price
Brand Name :	Saintenna
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	10000pcs/week
Delivery Time :	5-8working days

Add to Cart

Product Details
Company Profile

5dbi 10dbi Fibreglass Lora Antenna , 868mhz Omni Directional Antenna

Lora 868mhz antenna 5dbi antenna 10dbi fibreglass 868mhz omnidirectional antenna

PRODUCT INFORMATION

Mechanical Specification
Name	915MHz Lora antenna
Part Number	SAA31146A
Dimension(mm)	￠13×195
Connect Type	SMA-J
Color	Black
Work Temp.(℃)	-40℃～+85℃
Humidity	<75%

Electrical Specification
Frequency Range(MHz)	902.3-927.5
Gain(dBi)	2
VSWR	＜1.5
Polarization	Vertical
Input Impedance(Ω)	50
Max Input Power(w)	5

Mechanical Specification
名称	3.6GHz high-gain rubber antenna
Part Number	SAA31162A	SAA31162B	SAA31162C
Dimension(mm)	￠13×200
Connect Type	TNC(Male)	SMA(Male)	RP-SMA-Plug
Color	Black
Work Temp. (℃)	-40℃～+85℃
Humidity	<75%

Electrical Specification
Frequency Range(MHz)	3400～3800
Gain(dBi)	5
VSWR	<2
Polarization	Vertical
Input Impedance(Ω)	50
Max Input Power(w)	5

Mechanical Specification
名称	446MHz antenna
Part Number	SAA31221A
Dimension(mm)	￠10×110
Connect Type	SMA(Male)
Color	Black
Work Temp. (℃)	-40℃～+85℃
Humidity	<75%

Electrical Specification
Frequency Range(MHz)	440～450
Gain(dBi)	2.82
VSWR	<2
Polarization	Vertical
Input Impedance(Ω)	50
Max Input Power(w)	5

Mechanical Specification
名称	WiFi 5dBi rubber antenna
Part Number	SAA31076A	SAA31075A	SAA31052A
Dimension(mm)	￠13×190	￠13×190	￠13×190
Connect Type	NA	NA
Cable Length(mm)	RG1.13-115mm	RG1.13-95mm
Color	Black	Black
Work Temp. (℃)	-40℃～+85℃	-40℃～+85℃
Humidity	<75%	<75%

Electrical Specification
Frequency Range(MHz)	2400-2500
Gain(dBi)	5DBI
VSWR	<2
Polarization	Vertical
Input Impedance(Ω)	50
Max Input Power(w)	5

Mechanical Specification
Name	900M Stubby Rubber Antenna
Part Number	SAA31267A
Dimension(mm)	￠8×50
Connect Type	SMA(Male)	SMA-JP
Color	Black
Work Temp.(℃)	-40℃～+85℃
Humidity	<75%

Electrical Specification
Frequency Range(MHz)	880-960
Gain(dBi)	2.28
VSWR	<2.0
Polarization	Vertical
Input Impedance(Ω)	50
Max Input Power(w)	5

RELIABILITY TEST REPORT

No.	Item	Test Condition	Remark
1	Humidity	The device shall be placed in 90%~95% relative humidity and at 60℃±3℃ for 48h, then place at 25℃±5℃ and less than 65% relative humidity for 2h	It shall fulfill the specification
2	High Temperature	The device shall be placed at 85℃ for 48h, then place at 25℃±5℃ and less than 65% relative humidity for 2h	It shall fulfill the specification
3	Low Temperature	The device shall be placed at -40℃ for 48h, then place at 25℃±5℃ and less than 65% relative humidity for 2h	It shall fulfill the specification
4	Temperature Cycle	The device shall be placed at -40℃ for 30 min then at 85℃ for 30 min. Cycling shall be repeated 5 times. At the room temperature for 1h	It shall fulfill the specification
5	Salt Spray Test	The device shall be placed in salt spray box (5% NaCl) at 25℃±5℃ for 24h.	It shall fulfill the specification
6	Vibration Test	The device shall be subjected to vibration for 2h each in x,y and z axis with the amplitude of 1.5mm, the frequency shall be varied uniformly between the limits of 10Hz~55Hz.	It shall fulfill the specification
7	IP5X Test	The device shall be placed in the dust test machine, dust blowing mode, at 35℃ for 4 hours, then turn on dust floating mode, at 45℃ for 4 hours.	It shall fulfill the specification
8	IPX6 Test	The device shall be placed in spray water in all direction. Nozzle inner diameter 12.5mm, water flow 100±5L/min, for 3min	It shall fulfill the specification

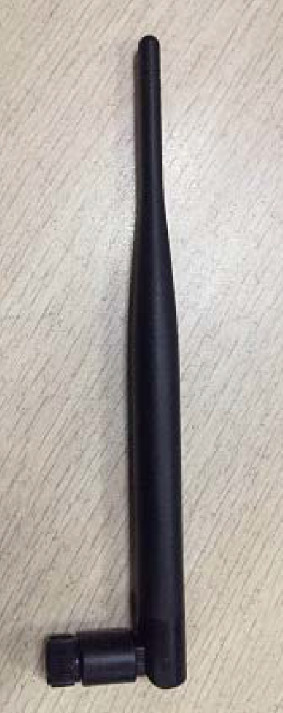

PRODUCT PICTURE

5dbi 10dbi Fibreglass Lora Antenna , 868mhz Omni Directional Antenna

PRODUCT CATEGORY

Our Main prouct is Wifi antenna, GPS antenna, GNSS antenna, 433mhz antenna, PCB antenna, FPC antenna, 4G lte antenna and so on.

OUR ADVANTAGES:

1. All the specifications bellow were customized by customers, we provide OEM/ODM service.

2. Samples available

3. Fast delivery, high quality and best price.

4. Saintenna have over 10years experience in antenna design and development.

Shipping&Packaging

1. Payment available: 100% T/T, Western Union, Paypal and so on.

2. Country of origion: Shanghai, China

3. Delivery terms: By sea or air or express( EMS, DHL, UPS, FedEx, TNT and so on)
